Features
1.High-SEER Brushless inverter DC permanent magnet compressors
2.Fast Cooling around 3os / Powerful heating within 1minute
3. Wide operating temperature range: -10°C to + 58°C
4.Quiet Indoor and Outdoor Unit (As Low As 26dB)
5.Eco-Friendly R32 Refrigerant
Off grid air conditioning instructions:

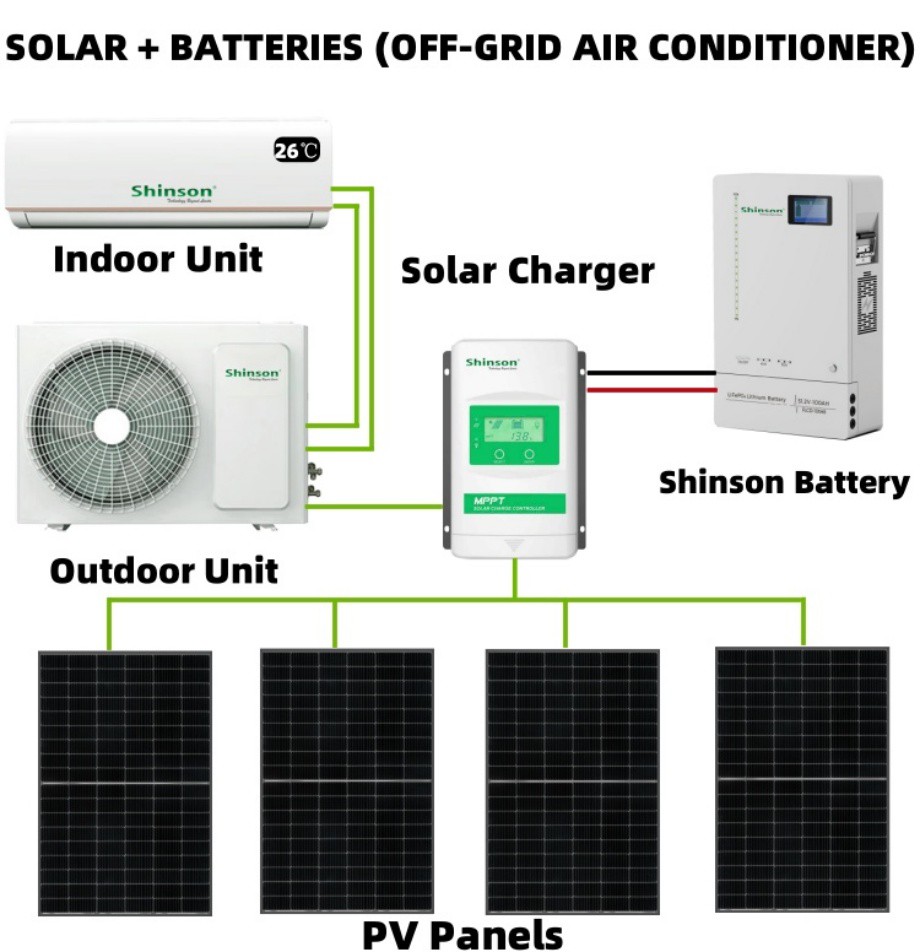

3P 24000btu DC48v Solar Off-grid Air Conditioner is fully designed for solar energy. All electrical components are powered by DC, including DC compressors, high-efficiency DC fan motors, DC valves, and solenoids. Therefore, the communication unit can use AC, DC, and battery power supply according to customer needs and energy conditions. The entire system only includes one air conditioning unit, one solar controller, some photovoltaic panels, and batteries. Compared with conventional AC units and off grid solar energy systems, the solar energy utilization rate will be increased by 20% -40%. With the same number of batteries and solar panels, the working time of the AC unit will be increased by 30-50%.
Technical Specifications
| Shinson Model | SAF-24K-RO | ||
| Max electric current/peak current |
A |
12/50A | |
| Power Supply | Rated Voltage | V~ | 208-240 |
| Rated Frequency | Hz | 50/60 | |
| DC Input Voltage | V~ | 48 | |
| Min/Max. Voltage | V~ | 42/58 | |
| Solar Dc Current | Max.Current | A | 50 |
| Rated Currert | Cooling Rate Current (T1) | A | 40.00 |
| Cooling Rate Current (T3) | A | 43.00 | |
| Heating Rate Current | A | 41.00 | |
| Rated Power | Cooling Rate Power (T1) | W | 1920 |
| Cooling Rate Power (T3) | W | 2060 | |
| Heating Rate Power | W | 1960 | |
| Min. Power Input | W | 280 | |
| Max. Power Input | W | 2350 | |
| Cooling Capacity (T1) | W | 7020 | |
| Btu/h | 24000 | ||
| Cooling Capacity (T3) | W | 5660 | |
| Btu/h | 19400 | ||
| Min. Cooling Capacity | W | 2100 | |
| Btu/h | 7150 | ||
| Max. Cooling Capacity | W | 7800 | |
| Btu/h | 26668 | ||
| Heating Capacity | W | 7050 | |
| Btu/h | 24000 | ||
| Min. Heating Capacity | W | 1400 | |
| Btu/h | 4777 | ||
| Max. Heating Capacity | W | 8600 | |
| Btu/h | 29343 | ||
| EER | W/W | 3.76 | |
| Btu/W | 12.86 | ||
| SEER | Btu/W | 20.00 | |
| COP | W/W | 3.75 | |
| Btu/W | 12.80 | ||
| HSPF | Btu/W | 9.60 | |
| Application Area | m2 | 30~45 | |
Our solar air conditioner uses innovative R32 refrigerant, which has a much lower global warming potential (GWP) than traditional refrigerants and can reduce the carbon footprint of the unit by up to 75%.
This environmentally friendly refrigerant improves cooling performance while minimizing its impact on the environment, making our solar air conditioning a more eco-friendly and efficient choice.
