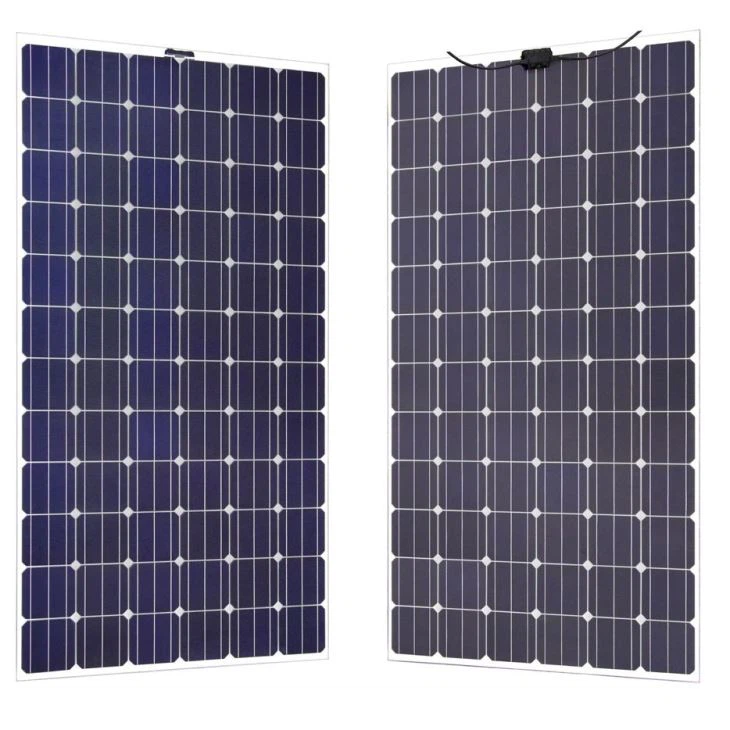

Hybrid Cell Technology
HIT/HJT/HCT/HDT modules use our patented Hybrid Cell Technology platform that utilizes enabling thin-film materials on surface engineered Silicon substrate to achieve high-efficiency power output and reliable energy production for increased project returns.
Unlike conventional crystalline silicon cell technologies, we use a highly-scalable process to deliver high output solar power at a very competitive Levelized Cost of Energy (LCOE).
√High Efficiency
20.7% Module Efficiency (STC),
24% cell Efficiency
√Bifacial Energy Boost
Harvests sun from the backside to increase power output up to 23%
√Dual-Glass Frameless Design
Our Design is more robust and does not require module grounding
√15 YEAR
PRODUCT WARRANTY
√25 YEAR
POWER WARRANTY
|
ELECTRICAL SPECIFICATIONS |
400 |
410 |
|
|
STC rated output PMPP (W) |
400 |
410 |
|
|
Cell Efficiency |
23.5% |
24% |
|
|
Module Efficiency STC |
20.2% |
20.7% |
|
|
Standard sorted output |
-0.6 |
-0.6 |
|
|
Open Circuit Voltage VOC (V) |
50.19 |
50.28 |
|
|
Short circuit current ISC (A) |
9.78 |
9.65 |
|
|
Rated Voltage VMPP (V) |
42.85 |
42.92 |
|
|
Rated Current IMPP (A) |
9.34 |
9.43 |
|
|
1: Standard Test Conditions for front-face of the panel: 1000 W/m2, 25°C. |
|||
|
BI-FACIAL OUTPUT* |
|
|
|
|
With 10% Backside Power Boost |
|
|
|
|
Power Output (W) |
435 |
445 |
|
|
Module Efficiency |
21.97% |
22.47% |
|
|
With 20% Backside Power Boost |
|
|
|
|
Power Output (W) |
475 |
485 |
|
|
Module Efficiency |
23.99% |
24.5% |
|
|
*Backside boost for flush mount configuration is ≤5%, resulting in Isc ≤9.56 – 9.77 A |
|||
|
TEMPERATURE COEFFICIENTS |
|||
|
Temperature coefficient PMPP |
-0.27%/C |
||
|
Temperature coefficient ISC |
+0.015%/C |
||
|
Temperature coefficient VOC |
-0.21%/C |
||
|
Normal operating cell temperature (NOCT)°C |
46C +/- 2 |
||
|
MECHANICAL SPECIFICATIONS |
|
|
|
|
Dimensions |
1,998 x 994 x 6/5 mm |
||
|
Weight |
28.5/22.8 kg |
||
|
Area |
1.99m2 |
||
|
Cell type |
Bifacial Hybrid Cell Technology (HIT/HJT/HCT/HDT) |
||
Company information
Shinson has 14+ years experiences with solar industry owned over 3G+ tier-1 Class solar panel manufacturing plants based in South East Asia.
Our product range covers Mono PERC, Bifacial, N-HJT and Flexibl, BIPV, Shingled panels, inverter, battery, soar lighting, solar air conditioner and so on.
Below are the summarized highlights by comparing with other companies:
LONG HISTROTY BRAND BORNED IN GERMANY(DE)
EXTENTED WARRANTY UP TO 20 YEARS
GLOBAL OFFICES AND WAREHOUSES
COMPETITIVE PRICES WITH FAST DELIVERY
We have the CE TUV,UL certificate, warranty 30+ years.
Product advantages
1.High Conversion Efficiency
Industry-leading processing techniques realize great module efficiency to a maximum of 17.7%, steady power output guaranteed.
2.Anti-reflective Coating and Reduce O&M Costs
Easier to clean by rainwater to remove dirt on the glass surface, making higher power output and lower maintenance costs.
3.0 to +5W Positive Tolerance
Gain more power yields than expected.
4.Excellent Loading Capability
2400Pa wind loads, 5400Pa snow loads.
Durable and long-lasting.
5.Top-quality & Trustworthy Product
Rigorous Quality Management System built.
Multiple internationally recognized PV industry standard certifications.
