Architectural Integration Excellence
Elevate architectural design with BIPV Solar Panels, seamlessly integrating solar technology into building structures. Experience a harmonious blend of aesthetics and energy efficiency.
Aesthetic Versatility
Explore the aesthetic versatility of BIPV Solar Panels. These panels offer a range of design options, allowing architects and homeowners to incorporate solar technology without compromising visual appeal.
Space Optimization
Optimize space utilization with BIPV Solar Panels, turning building surfaces into power-generating assets. This innovative approach enhances sustainability without requiring additional land or space.
Energy-Generating Building Envelopes
Transform building envelopes into energy-generating surfaces with BIPV Solar Panels. This integration turns structures into functional contributors to renewable energy production, reducing reliance on traditional power sources.
Customized Design Solutions
Enjoy customized design solutions with BIPV Solar Panels, catering to the unique architectural requirements of different projects. This flexibility ensures tailored solar solutions for diverse building designs.
BIPV Solar Panels redefine the intersection of architecture and renewable energy. With excellence in architectural integration, aesthetic versatility, space optimization, the transformation of building envelopes into energy generators, and customized design solutions, our panels offer a new paradigm for sustainable, visually appealing energy solutions.

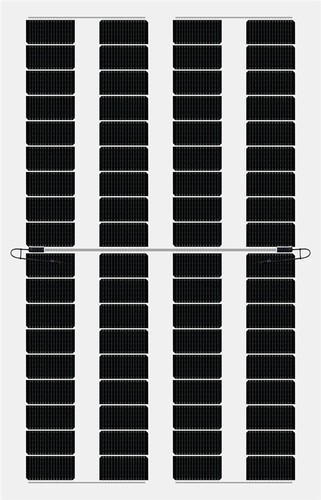

| 280w TopCon specification | |
| Part Number | S280N36BPV |
| Peak Power Watts-Pmax(Wp) | 280 |
| Open Circuit Voltage -Voc(V) | 25.45 |
| Short Circuit Current-Isc(A) | 13.29 |
| Maximum Power Voltage -Voc(V) | 22.28 |
| Maximum Circuit Current-Isc(A) | 12.57 |
| Transmittance(%) | 30-40 |
| Panel Dimension(H/W/O) | 1750*1150*7.1mm |
| Weight | 30kg |
| Cell Number | 72(36*2) |
| Front/Black Glass | 3.2mm+3.2mm tempered glass |
| Junction Box Protection Class | IP68 |
| Connector Type | MC4 |
| Cable | TUV 4.0mm², 400mm(+)/200mm(-)or Customized Length |
| Modules per box | 30pcs |
| Modules per 40' container | 780pcs |
Company information
Shinson has 14+ years experiences with solar industry owned over 3G+ tier-1 Class solar panel manufacturing plants based in South East Asia.
Our product range covers Mono PERC, Bifacial, N-HJT and Flexibl, BIPV, Shingled panels, inverter, battery, soar lighting, solar air conditioner and so on.
Below are the summarized highlights by comparing with other companies:
LONG HISTROTY BRAND BORNED IN GERMANY(DE)
EXTENTED WARRANTY UP TO 20 YEARS
GLOBAL OFFICES AND WAREHOUSES
COMPETITIVE PRICES WITH FAST DELIVERY
We have the CE TUV,UL certificate, warranty 30+ years.
Product advantages
1.49% high transmittance
2.MBB design reduces series resistance and shading area
3.Suitable for multiple applicable environment
4.Excellent PID resistance
5. Lloyd's 30 years power output warranty
